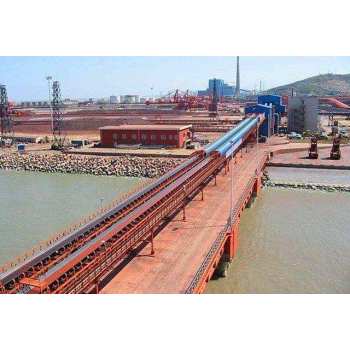

Large Carrying Capacity DTⅡ Type Belt Conveyor used in Mining, Port, Thermal Power Station

group name: SKE standardized Belt Conveyor

Min Order: 1 piece

brand name: SKE

model: DTⅡ

Nearest port for product export: Shanghai,China

Delivery clauses under the trade mode: FOB, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union

update time: Tue, 10 Aug 2021 14:12:53 GMT

contact supplier

Paramtents

Color Customized

Packging & Delivery

Min Order1 piece

Briefing

DTⅡ belt conveyor is a unified update of the two major series of TD75 and DX (general-purpose and high-strength) belt conveyors

Detailed

Large Carrying Capacity DTⅡ Type Belt Conveyor used in Mining, Port, Thermal Power Station

DTⅡ belt conveying machine is a unified update of the two major series of TD75 and DX (general-purpose and high-strength) belt conveyors. This series is divided into three types: light, medium and heavy according to the carrying capability. The driving pulleys of DTⅡbelt conveyor have diameters of 400, 500, 630, 800, and 1000mm.

Application

DTⅡtype belt conveyor can be widely used in metallurgy, mining, coal, port, thermal power station, building materials, chemical industry, light industry, petroleum and other industries. If conveyors have to run in special environments, we can provide belt conveyor protection units with abilities of heat-resistant, cold-resistant, waterproof, corrosion-proof, explosion-proof, flame-retardant, etc. This series of belt conveyors are designed according to components and have high versatility.

Advantages

1.Large carrying capability

2.Design base on requirements

3.Easy to maintain

4.Widely used in different fields

Tech Datasheet

Belt With(mm)	Conveying Capacity Iv（m3/h）
Belt Speed v(m/s)
0.8	1.0	1.25	1.6	2.0	2.5	3.15	4.0	(4.5)	5.0	(5.6)	6.5
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	198	248	310	397	496	620	781
1000	324	405	507	649	811	1014	1278	1622
1200		593	742	951	1188	1486	1872	2377	2674	2971
1400		825	1032	1321	1652	2065	2602	3304	3718	4130
1600					2186	2733	3444	4373	4920	5466	6122
1800					2795	3494	4403	5591	6291	6989	7829	9083
2000					3470	4338	5466	6941	7808	8676	9717	11277
2200							6843	8690	9776	10863	12166	14120
2400							8289	10526	11842	13158	14737	17104

Note:
1. The conveying capacity Iv value is calculated according to the properties, the dynamic stacking angle is 20 °, and the idler groove angle is 35 °.
2. The belt speed (4.5) and (5.6) m / s in the table are non-standard values and are generally not recommended.
