KS Large Inclined Corrugated Sidewall Belt Conveyor systems for Concrete Aggregate

group name: Large Inclined Belt Conveyor

Min Order: 1 set

brand name: SKE

model: KS

Nearest port for product export: Shanghai,China

Delivery clauses under the trade mode: FOB, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union

update time: Mon, 05 Jul 2021 16:01:43 GMT

contact supplier

Paramtents

color customized

Packging & Delivery

Min Order1 set

Briefing

KS Corrugated Sidewall Belt Conveyor, which is known as large inclination belt conveyor and high/steep angle belt conveyor.

Detailed

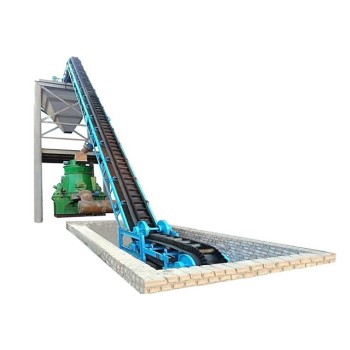

KS Large Inclined Corrugated Sidewall Belt Conveyor systems for Concrete Aggregate

SKE KS Corrugated Sidewall Belt Conveyor, which is also known as large inclination belt conveyor and high/steep angle belt conveyor. The biggest feature of the structure is to replace the ordinary belt with corrugated sidewall belt. Its structural composition and working principle are the same as the general belt conveyor.

Advantages

1.Conveying angles are able up to 90°

2.Simple structure, small footprint, low noise

3.As reliable as a universal belt conveyors

4.No internal friction energy loss and save power

5.Able to be linked with different flat belt conveyors

6.Large conveying capacity for bulk materials handling

Application

KS Corrugated Sidewall Belt Conveyor systems have the advantage of large conveying capacity, taking small footprint, few malfunction, low noises, low running costs, etc. Therefore, it is widely used in the location of port and mine, metallurgy, mining, coal, power stations, building materials(sand, aggregate, gravel, concrete, etc), chemicals, light industry, machinery, petroleum, grain and other industries.

Tech Datasheet

Specifications of Corrugated Sidewall Belt Conveyor
Belt width(mm)	Height of ribs (mm)	Belt speed(m/s）	Angles(β/(°))	Conveying Capacity (m3/h）	Power(kW)
300	40	0.8～2.0	30～90	18	1.5～18.5
	60			24
	80			40
400	60	0.8～2.0		34	1.5～18.5
	80			60
	10			80
500	80	0.8～2.0		84	1.5～18.5
	100			112
	120			98
650	100	0.8～2.0		156	1.5～2.2
	120			140
	160			186
800	120	0.8～2.5		186	2.2～5.5
	160			318
	200			360
1000	160	1.0～2.5		428	4.0～75
	200			483
	240			683
1200	160	1.0～3.15		535	5.5～110
	200			765
	240			1077
	300			1358
1400	200	1.0～3.15		920	5.5～160
	240			1298
	300			1657
	400			2381
1600	200	1.25～3.15		1074	5.5～160
	240			1515
	300			1953
	400			2807
1800	240	1.25～4.0		2200	7.5～185
	300			2724
	400			4106
	500			5036
2000	240	1.25～4.0		2480	11～220
	300			3236
	400			4648
	500			5736
2200	300	1.25～4.0		3612	11～220
	400			5192
	500			6432
	630			7820
2400	300	1.25～4.0		3992	11～220
	400			5736
	500			7132
	630			8668
The conveying capacity in the table is calculated according to the inclination of 30 °, the maximum belt speed allowed by this specification, and the minimum distance between the diaphragms.
