DX series fixed Belt Conveyor used in metallurgy, mines, coal, power station, building materials
- group name
- Fixed Belt Conveyor
- Min Order
- 1 set
- brand name
- SKE
- model
- B800/B1000/B1200/B1400/B1600/B1800/B2000
- Nearest port for product export
- Shanghai,China
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Westem Union
- update time
- Wed, 17 Jun 2020 16:35:15 GMT
Paramtents
Color Customized
Application aggregate/ mix batch plant/ grain/coal etc
Packging & Delivery
-
Min Order1 set
Briefing
DT X series belt conveyor is a stationary belt conveyor which is suitable for bulk material handling;
Detailed
Product Description
Description
DX series fixed Belt Conveyor used in metallurgy, mines, coal, power station, building materials：The universal series design - DX steel cord belt conveyor is a high-strength conveyor, which is suitable for large-volume and long-distance transportation of bulk materials. It can transport materials with a bulk density of 0.8~2.5t/m3. The working environment temperature is generally -20~40 °C. In cold regions, the driving part should have heating conditions. The conveying distance reach several kilometers; The conveying capacity is large, and the conveying capacity is 400~9600m3/h. The elongation of the conveyor belt is small, about 1/5 of the ordinary belt. The service life is 2~3 times longer than the ordinary belt.
It can be used in out-door, better to be configured with corridors or protective covers whenever possible. According to the customer's conveying process requirements, our company can design, calculate and combine the whole and the entire conveyor line according to different terrains and working conditions.
Application:
Widely used in continuous conveying systems such as metallurgy, coal, transportation, electric power plant, mining, chemical ;
Features：
1. Wide range of conveying materials, large conveying capacity, wide range of conveying lines,
2. Simple structure, reliable, strong in safety, low in noise and low in pollution.
3. High efficiency, low energy consumption, low operating costs, and capital investment
Technical Specification
Width | Conveyor Belt Strength GX (N/mm) | Speed (m/s) |
||||||||||||||
650 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | |||||||
Max Tension Allowed (KN) | 2.0 | 2.5 | 3.15 | 4.0 | 5.0 | |||||||||||
800 | DX3 | 52 | 64 | 80 | 100 | 128 | 160 | 200 | 240 | 280 | 320 | √ | √ | √ | -- | -- |
1000 | DX4 | -- | 80 | 100 | 125 | 160 | 200 | 250 | 300 | 350 | 400 | √ | √ | √ | -- | -- |
1200 | DX5 | -- | -- | 120 | 150 | 192 | 240 | 300 | 360 | 420 | 480 | √ | √ | √ | √ | -- |
1400 | DX6 | -- | -- | -- | 175 | 224 | 280 | 350 | 420 | 490 | 560 | √ |
√
|
√
|
√
|
√
|
1600 | DX7 | -- | -- | -- | -- | 256 | 320 | 400 | 480 | 560 | 640 | √ | √ | √ | √ | √ |
1800 | DX8 | -- | -- | -- | -- | 288 | 360 | 450 | 540 | 630 | 720 | √ | √ | √ | √ | √ |
2000 | DX9 | -- | -- | -- | -- | -- | 400 | 500 | 600 | 700 | 800 | √ |
√
|
√
|
√
|
√
|
Remark:
1. It can be designed to 51 different model conveyors based on different conveyor belt wideth and strenght.
2. The max tension is calculated by n=10.
Conveying Capacity
Speed (m/s) | ||||||
2.0 | 2.5 | 3.15 | 4.0 | 5.0 | ||
Capacity (t/h) | ||||||
|
DX3
|
800 | 388-550 | 485-688 |
612-865
|
--
|
--
|
DX4 | 1000 | 632-888 | 790-1110 | 1000-1400 | -- | -- |
DX5 | 1200 | 926-1300 | 1158-1625 | 1460-2050 | 1852-2600 | -- |
DX6 | 1400 | 1276-1800 | 1595-2250 | 2010-2830 | 2552-3600 | 3190-4500 |
|
DX7
|
1600 | 1700-3070 | 2125-2975 |
2680-3850
|
3400-4760
|
4250-5950
|
|
DX8
|
1800 | 2180-3070 | 2725-3838 |
3440-4840
|
4360-6140
|
5450-7675
|
|
DX9
|
2000 | 2740-3840 | 3425-4800 |
4230-6050
|
5480-7680
|
6850-9600
|
Remarks:
1.The data is calculated based on the groove angle=30°.
2.The capacity range will be different due to the material’s bulk density.

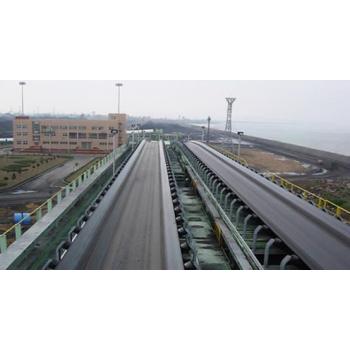

Product Display
